[C# 筆記] 在 ASP.NET Core MVC 使用 EF Core + Server SQL 操作 CRUD

Posted Aug 1, 2023
By R
36 min read

Take notes…

  • 建立ASP.NET Core MVC專案
  • 安裝 Nuget：Microsoft.EntityFrameworkCore.SqlServer、Microsoft.EntityFrameworkCore.Tools
  • 建立 Model，建立一個 Employee Model 來取得資料 (對應資料表所有的欄位，寫成屬性)
  • 新增DbContext.cs類別(用來跟資料庫溝通)
    1. 繼承DbContext
    2. 新增建構函式，調用父類的構造方法。(選擇有options參數的建構子，可將options傳入父類)
    3. 在DbContext.cs中建立DbSet<Employee>屬性

DbContext 是EF Core 跟資料庫溝通的主要類別，透過繼承 DbContext 可以定義跟資料庫溝通的行為。
先建立一個類別繼承 DbContext，同時建立DbSet。

1
2
3
4
5
6
7
8
9
10
11

namespace ASPNETMVCCRUD.Data
{
    //1. 繼承 DbContext
    public class MVCDemoDbContext : DbContext
    {
        //2. 新增建構函式，使用 base 調用父類建構函式，並將options傳入
        public MVCDemoDbContext(DbContextOptions options) : base(options) { }
        //3. 建立員工實體集合的屬性(Employee型別的DbSet物件)
        public DbSet<Employee> Employees { get; set; }
    }
}
  • 在Program.cs中註冊加入DbContext服務(AddDbContext)
1
2
3
4

//加入DbContext服務
builder.Services.AddDbContext<MVCDemoDbContext>(options =>
    options.UseSqlServer(builder.Configuration
    .GetConnectionString("MvcDemoConnectionString")));

Introduction

CRUD

  • C - Creat
  • R - Read
  • U - Update
  • D - Delete

MVC

  • M - Model
  • V - View
  • C - Control

EF Core

Entity Framework (EF) Core 是常見Entity Framework 資料存取技術的輕量型、可擴充、開放原始碼且跨平台版本。

Entity Framework Core 工具有助於設計階段開發工作。 它們主要用來管理「移轉」以及將資料庫結構描述反向工程以支援 DbContext 和實體類型。

Create New ASP.NET MVC

Create a new project > ASP.NET Core Web App (MVC)

Install Entity Framework Core (EF Core)

專案 > 管理 NuGet 套件：

  • Microsoft.EntityFrameworkCore.SqlServer
  • Microsoft.EntityFrameworkCore.Tools
  • Microsoft.EntityFrameworkCore.SqlServer
    告訴實體框架，我們想要用SQL Server資料庫以建立連接
  • Microsoft.EntityFrameworkCore.Tools
    要執行CRUD的操作

建立 DbContext 類別

  • 前置準備：建立 Employee.cs，建立 Employee Model 來取得資料，其對應資料表Employee中所有的欄位，寫成屬性。
  • 新增 DbContext.cs 資料存取的類別，用來跟資料庫溝通，和定義資料Model

新增 DbContext.cs

安裝完這兩個套件後，接下來就要建立DbContext類別：
建立「Data」資料夾 > 新增類別「MVCDemoDbContext.cs」

DbContext 是EF Core 跟資料庫溝通的主要類別，透過繼承 DbContext 可以定義跟資料庫溝通的行為。 (先建立一個類別繼承 DbContext，同時建立DbSet。)

DbContext 是用來對DB操作的一個Class，主要用來處理DB的CURD，以及管理DB連線等等。

繼承 DbContext

1
2
3
4
5
6
7

using Microsoft.EntityFrameworkCore;

namespace ASPNETMVCCRUD.Data {
    public class MVCDemoDbContext : DbContext //繼承 DbContext
    {
    }
}

在 DbContext.cs 新增建構函式

可以使用快速鍵Ctrl + .，選擇帶有options參數的建構函式方法，以便將options傳入基類(父類)。

1
2

//調用父類的構造函數
public MVCDemoDbContext(DbContextOptions options) : base(options) { }

1
2
3
4
5
6
7
8
9
10
11
12

using Microsoft.EntityFrameworkCore;

namespace ASPNETMVCCRUD.Data
{
    public class MVCDemoDbContext : DbContext //繼承 DbContext
    {
        //調用父類的構造函數
        public MVCDemoDbContext(DbContextOptions options) : base(options)
        {
        }
    }
}

建立屬性

使用快速鍵建立屬性：prop，然後按兩下tab鍵，將屬性設為 DbSet<Employee>

1
2

//Employee所有實體的集合
public DbSet<Employee> Employees { get; set; }

1
2
3
4
5
6
7
8
9
10
11
12
13
14

using ASPNETMVCCRUD.Models;
using Microsoft.EntityFrameworkCore;

namespace ASPNETMVCCRUD.Data
{
    public class MVCDemoDbContext : DbContext //繼承 DbContext
    {
        //構造函數:調用父類的構造函數
        public MVCDemoDbContext(DbContextOptions options) : base(options) { }

        //Employee所有實體的集合
        public DbSet<Employee> Employees { get; set; }
    }
}

DbSet<TEntity> 類別
DbSet 代表內容中所有實體的集合，或可從指定型別的資料庫查詢的實體集合。 DbSet 物件是使用 DbCoNtext.Set 方法從 DbCoNtext 建立的。

建立 Model

建立一個 Employee Model，為員工Employee.cs寫一些屬性。
(Employee Model 對應資料表Employee中的所有的欄位，寫成屬性)

1
2
3
4
5
6
7
8
9
10
11
12

namespace ASPNETMVCCRUD.Models
{
    public class Employee
    {
        public Guid Id { get; set; }
        public string? Name { get; set; }
        public string? Email { get; set; }
        public DateTime DateOfBirth { get; set; }
        public int Salary { get; set; }
        public string? Department { get; set; }
    }
}

設定DB連線

Program.cs 加入DbContext服務(DB連線)

在builder.Services.AddControllersWithViews();方法之後，加入DbContext服務，型態為<MVCDemoDbContext>，它需要一些選項，我想要在Sql Server資料庫中使用它作為DbContext，所以選項就使用UseSqlServer，其連線字串

1
2
3
4

//加入DbContext服務:資料庫連線
builder.Services.AddDbContext<MVCDemoDbContext>(options =>  //DbContext型態為MVCDemoDbContext
    options.UseSqlServer(builder.Configuration //使用 Sql Server
    .GetConnectionString("MvcDemoConnectionString"))); //連線字串(appsettings.json設定檔)

appsettings.json 設定連線字串

設定連線字串

1
2
3
4
5
6
7
8
9
10
11
12

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*",
  "ConnectionStrings": {
    "MvcDemoConnectionString": "Data Source=RIVAWIN10\\MSSQLSERVER_2019;Initial Catalog=MvcDemoDb;User ID=riva;Password=1234;Trust Server Certificate=True"
  }
}

NuGet主控台:兩個指令 快速建立db
Add-Migration “Initial Migration”
Update-Database

Create New Controller - Add Action Method (MVC)

  1. 新增 Controller (EmployeesController.cs)
  2. 在 EmployeesController 新增 Add 方法 (HttpGet方法，導向用戶輸入資料的頁面)
  3. 製作 Razor View 表單 (用戶輸入資料的頁面)
  4. 建立 View Model (AddEmployeeViewModel.cs)，這些值會來自瀏覽器(將用戶輸入的資料寫成屬性)
  5. 在 EmployeesController 新增 Add 方法 (HttpPost方法，取得用戶輸入的資料，存入db)

用戶輸入 Add 方法 (HttpGet)

新增 Controller

  • 新增一個 「MVC Controller - Empty」> EmployeesController.cs
  • 新增 Add 方法(HttpGet會導向用戶輸入頁面)
1
2
3
4
5

[HttpGet]
public IActionResult Add()
{
    return View();
}

新增 Razor View

  • 新增檢視 Razor View (Add.cshtml) 點選return View();的View > 右鍵「新增檢視」> 選擇「Razor View - Empty」

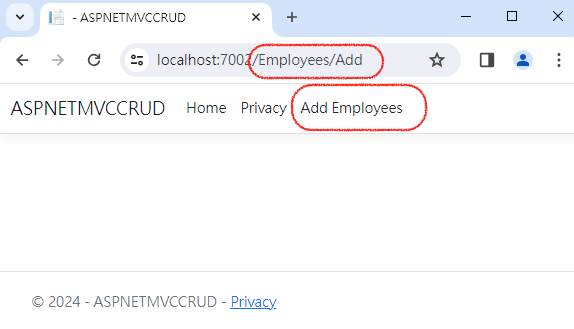

  • Shared 資料夾 > _Layout.cshtml > 加入導航連結link

1
2
3

<li class="nav-item">
    <a class="nav-link text-dark" asp-area="" asp-controller="Employees" asp-action="Add">Add Employees</a>
</li>

取得製作表單的結構

到 bootstarp 5 > Forms > Overview > Copy 基本表單的 html

Go to Add.cshtml > 貼上剛複製的 html > 只需要html的結構，所以刪除多餘的html

1
2
3
4
5
6
7
8
9

<!--form方法為post，action為對應controller的Add方法-->
<form method="post" action="Add">
    <div class="mb-3">
        <label for="" class="form-label">Name</label>
        <input type="text" class="form-control">
    </div>

    <button type="submit" class="btn btn-primary">Submit</button>
</form>

建立 View Model

新增一個類別 AddEmployeeViewModel.cs，希望這些值來自瀏覽器 (將用戶輸入的值存在View Model)

1
2
3
4
5
6
7
8
9
10
11
12

namespace ASPNETMVCCRUD.Models
{
    //希望這些值來自瀏覽器
    public class AddEmployeeViewModel
    {
        public string? Name { get; set; }
        public string? Email { get; set; }
        public DateTime DateOfBirth { get; set; }
        public int Salary { get; set; }
        public string? Department { get; set; }
    }
}

製作 Razor View 表單

在Add.cshtml 加上model @model View Model

1

@model ASPNETMVCCRUD.Models.AddEmployeeViewModel

逐步加上對應View Model的屬性 asp-for對應View Model的屬性

1
2
3
4

<div class="mb-3">
    <label for="" class="form-label">Name</label>
    <input type="text" class="form-control" asp-for="Name"> <!--Name對應到View Model的屬性-->
</div>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

@model ASPNETMVCCRUD.Models.AddEmployeeViewModel
@{
}

<!--form方法為post，action為對應controller的Add方法-->
<form method="post" action="Add">
    <div class="mb-3">
        <label for="" class="form-label">Name</label>
        <input type="text" class="form-control" asp-for="Name"> <!--Name對應到View Model的屬性-->
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Email</label>
        <input type="email" class="form-control" asp-for="Email"> <!--Email對應到View Model的屬性-->
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Birthday</label>
        <input type="date" class="form-control" asp-for="DateOfBirth">
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Salary</label>
        <input type="number" class="form-control" asp-for="Salary">
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Department</label>
        <input type="text" class="form-control" asp-for="Department">
    </div>
    <button type="submit" class="btn btn-primary">Submit</button>
</form>

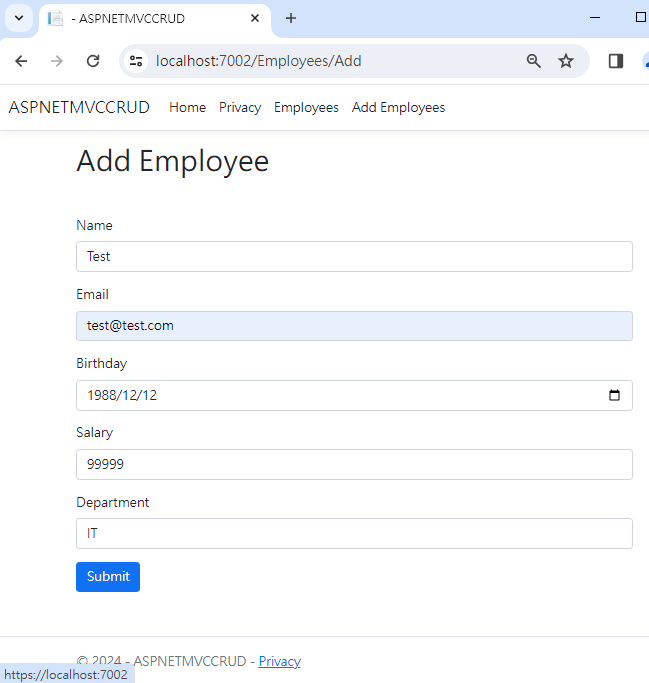

執行

用戶提交 Add 方法 (HttpPost)

新增HttpPost 的Add 方法

新增 HttpPost的Add 方法，將資料存入db。
傳入的參數為來自瀏覽器用戶輸入的值 ViewModel (AddEmployeeViewModel)

1
2
3
4
5

//用戶提交
[HttpPost]
public IActionResult Add(AddEmployeeViewModel data)
{
}

撰寫HttpPost的Add 方法的邏輯

  1. 新增建構函式、建立與db溝通的變數(DbContext)
  2. 先將用戶輸入的值轉為Employee實體
  3. 儲存到db
  4. 重新導向至Add 頁面
  5. 改成async await非同步寫法

新增建構函式、建立與db溝通的變數(DbContext)

1
2
3
4
5

//與資料庫溝通的DbContext
private readonly MVCDemoDbContext db;
public EmployeesController(MVCDemoDbContext dbContext) {
    db = dbContext;
}

將用戶輸入的值存入db

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

//用戶提交
[HttpPost]
public IActionResult Add(AddEmployeeViewModel data)
{
    //先將用戶輸入的值轉為employee
    var employee = new Employee {
        Id = Guid.NewGuid(),
        Name = data.Name,
        Email = data.Email,
        DateOfBirth = data.DateOfBirth,
        Salary = data.Salary,
        Department = data.Department
    };

    //儲存到db
    db.Employees.Add(employee); //資料加入到Employees
    db.SaveChanges(); //確認保存到db

    //回到員工列表的頁面
    return RedirectToAction("Index");
}

還沒有製作員工列表的頁面，就先回到新增Add頁面

1
2

//回到Add頁面
return RedirectToAction("Add");

改成 async await 非同步寫法

方法加上async關鍵字，並將此方法操作包裝在一個Task<>中，結構準備好了

再將方法改成異步方法AddAsync、SaveChangesAsync，並在前面加上await關鍵字

1
2
3
4
5
6
7
8
9
10
11
12

//用戶提交
[HttpPost]
public async Task<IActionResult> Add(AddEmployeeViewModel data)
{
    //...

    //儲存到db
    await db.Employees.AddAsync(employee); //資料加入到Employees
    await db.SaveChangesAsync(); //確認保存到db

    //...
}

完整程式碼EmployeesController.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

public class EmployeesController : Controller
{
    //與資料庫溝通的DbContext
    private readonly MVCDemoDbContext db;
    public EmployeesController(MVCDemoDbContext dbContext) {
        db = dbContext;
    }

    //用戶輸入
    [HttpGet]
    public IActionResult Add()
    {
        return View();
    }

    //用戶提交
    [HttpPost]
    public async Task<IActionResult> Add(AddEmployeeViewModel data)
    {
        //先將用戶輸入的值轉為employee
        var employee = new Employee {
            Id = Guid.NewGuid(),
            Name = data.Name,
            Email = data.Email,
            DateOfBirth = data.DateOfBirth,
            Salary = data.Salary,
            Department = data.Department
        };

        //儲存到db
        await db.Employees.AddAsync(employee); //資料加入到Employees
        await db.SaveChangesAsync(); //確認保存到db

        //回到員工列表的頁面
        return RedirectToAction("Index");
    }
}

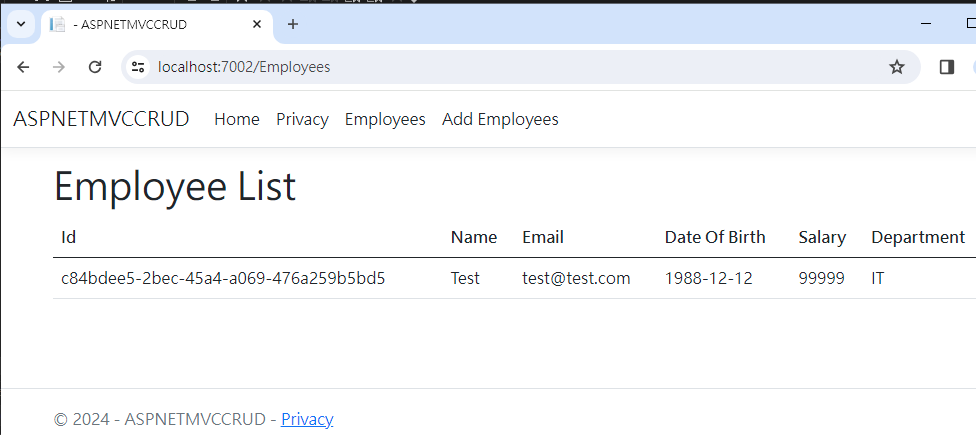

Create Employee List Action Method

  1. 新增顯示所有員工資料的方法public async Tas<IActionResult> Index() { ... }
  2. 方法名右鍵 > 新增檢視(Razor View) > Index.cshtml
  3. 製作列表頁面
    • 使用@model 導入員工(Employee Model)，因為是列表，所以加上List<>
    • 使用table 先將要顯示的結構弄出來
    • 使用 @foreach 跑迴圈將資料顯示出來
  4. 回到方法，加上 return Veiw 顯示資料 (return View(employee);)
  5. _Layout.cshtml 加上連結

Employee List 方法

新增 列表方法，一樣用異步方法，方法加上async包裝在一個Task中
裡面也使用異步方法ToListAsync，方法的前面加上await

1
2
3
4
5
6

//列表
[HttpGet]
public async Task<IActionResult> Index() {
    await db.Employees.ToListAsync();
    //todo view...
}

製作 Razor View 列表頁面

@model 使用 Employee Model List<Employee>

因為還沒有顯示面頁，點擊Indext按右鍵，新增檢視 Razor View
因為是取得所有員工列表，所以@model可以導入 Employees(Model)，
因為是列表，所以前面加上List<>

1
2

<!--因為是取得所有員工列表資料，所以可以導入Employee (Model)，因為是列表，所以加上List<>-->
@model List<ASPNETMVCCRUD.Models.Domain.Employee>

@foreach 跑迴圈將資料顯示出來

使用table 先將結構弄出來

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

<table class="table">
    <thead>
        <tr>
            <th>Id</th>
            <th>Name</th>
            <th>Email</th>
            <th>Date Of Birth</th>
            <th>Salary</th>
            <th>Department</th>
        </tr>
    </thead>
    <tbody>
        <!--跑迴圈將資料顯示出來-->
        <!-- TODO -->
    </tbody>
</table>

使用 foreach 讀取 Model 資料

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

<table class="table">
    <thead>
        <tr>
            <th>Id</th>
            <th>Name</th>
            <th>Email</th>
            <th>Date Of Birth</th>
            <th>Salary</th>
            <th>Department</th>
        </tr>
    </thead>
    <tbody>
        <!--跑迴圈將資料顯示出來-->
        @foreach(var employee in Model)
        {
            <tr>
                <td>@employee.Id</td>
                <td>@employee.Name</td>
                <td>@employee.Email</td>
                <td>@employee.DateOfBirth.ToString("yyyy-MM-dd")</td>
                <td>@employee.Salary</td>
                <td>@employee.Department</td>
            </tr>
        }
    </tbody>
</table>

列表方法顯示View + 導航連結

回到列表方法，將employees放入View中

1
2
3
4
5
6

//列表
[HttpGet]
public async Task<IActionResult> Index() {
    var employees = await db.Employees.ToListAsync();
    return View(employees);
}

導航加上連結 (Shared > _Layout.cshtml)

1
2
3

<li class="nav-item">
    <a class="nav-link text-dark" asp-area="" asp-controller="Employees" asp-action="Index">Employees</a>
</li>

執行

完整程式碼 (EmployeeController.cs)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

using ASPNETMVCCRUD.Data;
using ASPNETMVCCRUD.Models;
using ASPNETMVCCRUD.Models.Domain;
using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;

namespace ASPNETMVCCRUD.Controllers
{
    public class EmployeesController : Controller
    {
        //與資料庫溝通的DbContext
        private readonly MVCDemoDbContext db;
        public EmployeesController(MVCDemoDbContext dbContext) {
            db = dbContext;
        }

        //列表
        [HttpGet]
        public async Task<IActionResult> Index() {
            //從db取得所有的員工資料
            var employee = await db.Employees.ToListAsync();
            //將員工資料放入view中
            return View(employee);
        }

        //用戶輸入
        [HttpGet]
        public IActionResult Add()
        {
            return View();
        }

        //用戶提交
        [HttpPost]
        public async Task<IActionResult> Add(AddEmployeeViewModel data)
        {
            //先將用戶輸入的值轉為employee
            var employee = new Employee {
                Id = Guid.NewGuid(),
                Name = data.Name,
                Email = data.Email,
                DateOfBirth = data.DateOfBirth,
                Salary = data.Salary,
                Department = data.Department
            };

            //儲存到db
            await db.Employees.AddAsync(employee); //資料加入到Employees
            await db.SaveChangesAsync(); //確認保存到db

            //回到員工列表的頁面
            return RedirectToAction("Index");
        }
    }
}

完整程式碼 (Index.cshtml)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

<!--因為是取得所有員工列表資料，所以可以用Employee Model，因為是列表，所以加上List<>-->
@model List<ASPNETMVCCRUD.Models.Domain.Employee>

@{
}

<h1>Employee List</h1>

<table class="table">
    <thead>
        <tr>
            <th>Id</th>
            <th>Name</th>
            <th>Email</th>
            <th>Date Of Birth</th>
            <th>Salary</th>
            <th>Department</th>
        </tr>
    </thead>
    <tbody>
        <!--跑迴圈將資料顯示出來-->
        @foreach(var employee in Model)
        {
            <tr>
                <td>@employee.Id</td>
                <td>@employee.Name</td>
                <td>@employee.Email</td>
                <td>@employee.DateOfBirth.ToString("yyyy-MM-dd")</td>
                <td>@employee.Salary</td>
                <td>@employee.Department</td>
            </tr>
        }
    </tbody>
</table>

完整程式碼(_Layout.cshtml)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>@ViewData["Title"] - ASPNETMVCCRUD</title>
    <link rel="stylesheet" href="~/lib/bootstrap/dist/css/bootstrap.min.css" />
    <link rel="stylesheet" href="~/css/site.css" asp-append-version="true" />
    <link rel="stylesheet" href="~/ASPNETMVCCRUD.styles.css" asp-append-version="true" />
</head>
<body>
    <header>
        <nav class="navbar navbar-expand-sm navbar-toggleable-sm navbar-light bg-white border-bottom box-shadow mb-3">
            <div class="container-fluid">
                <a class="navbar-brand" asp-area="" asp-controller="Home" asp-action="Index">ASPNETMVCCRUD</a>
                <button class="navbar-toggler" type="button" data-bs-toggle="collapse" data-bs-target=".navbar-collapse" aria-controls="navbarSupportedContent"
                        aria-expanded="false" aria-label="Toggle navigation">
                    <span class="navbar-toggler-icon"></span>
                </button>
                <div class="navbar-collapse collapse d-sm-inline-flex justify-content-between">
                    <ul class="navbar-nav flex-grow-1">
                        <li class="nav-item">
                            <a class="nav-link text-dark" asp-area="" asp-controller="Home" asp-action="Index">Home</a>
                        </li>
                        <li class="nav-item">
                            <a class="nav-link text-dark" asp-area="" asp-controller="Home" asp-action="Privacy">Privacy</a>
                        </li>
                        <li class="nav-item">
                            <a class="nav-link text-dark" asp-area="" asp-controller="Employees" asp-action="Index">Employees</a>
                        </li>
                        <li class="nav-item">
                            <a class="nav-link text-dark" asp-area="" asp-controller="Employees" asp-action="Add">Add Employees</a>
                        </li>
                    </ul>
                </div>
            </div>
        </nav>
    </header>
    <div class="container">
        <main role="main" class="pb-3">
            @RenderBody()
        </main>
    </div>

    <footer class="border-top footer text-muted">
        <div class="container">
            &copy; 2024 - ASPNETMVCCRUD - <a asp-area="" asp-controller="Home" asp-action="Privacy">Privacy</a>
        </div>
    </footer>
    <script src="~/lib/jquery/dist/jquery.min.js"></script>
    <script src="~/lib/bootstrap/dist/js/bootstrap.bundle.min.js"></script>
    <script src="~/js/site.js" asp-append-version="true"></script>
    @await RenderSectionAsync("Scripts", required: false)
</body>
</html>

Create View/Edit Employee Page

View Employee Page

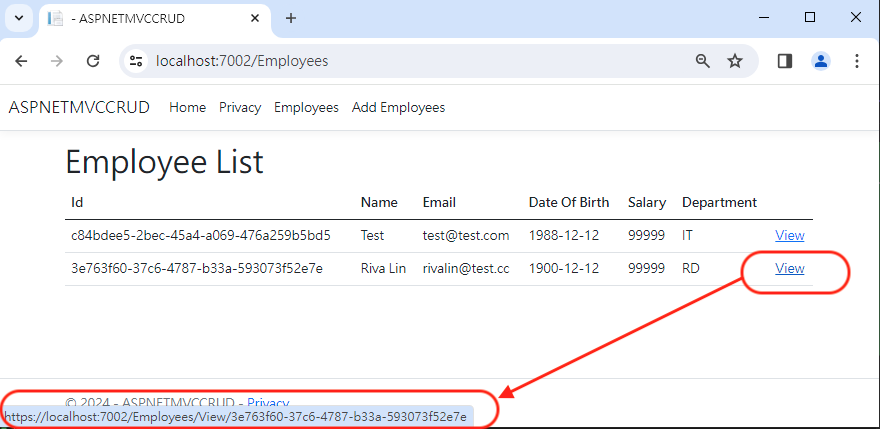

1. 列表中加上「預覽」按鈕

  • 加上View按鈕
  • View按鈕的網址路徑會顯示員工ID

想要在列表中有個「預覽」按鈕，可以檢視該員工資料的連結
Employee Folder > Index.cshtml

在table中加上一個空的<th>, 跑迴圈的地方加上一個<td>,
裡面放入連結，該連結會顯示ID

1
2
3
4
5
6
7
8

<table>
    <thead><!--標題-->
        <th></th>
    </thead>
    <tbody><!--內容-->
        <td><a href="Employees/View/@employee.Id">View</a></td>
    </tbody>
</table>


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

<!--因為是取得所有員工列表資料，所以可以用Employee Model導入 Employee，因為是列表，所以加上List<>-->
@model List<ASPNETMVCCRUD.Models.Domain.Employee>
@{
}

<h1>Employee List</h1>
<table class="table">
    <thead>
        <tr>
            <th>Id</th>
            <th>Name</th>
            <th>Email</th>
            <th>Date Of Birth</th>
            <th>Salary</th>
            <th>Department</th>
            <th></th>
        </tr>
    </thead>
    <tbody>
        <!--跑迴圈將資料顯示出來-->
        @foreach(var employee in Model)
        {
            <tr>
                <td>@employee.Id</td>
                <td>@employee.Name</td>
                <td>@employee.Email</td>
                <td>@employee.DateOfBirth.ToString("yyyy-MM-dd")</td>
                <td>@employee.Salary</td>
                <td>@employee.Department</td>
                <td><a href="Employees/View/@employee.Id">View</a></td>
            </tr>
        }
    </tbody>
</table>

2. EmployeesController 新增 View方法 + 快速新增檢視(View.cshtml)

1
2
3
4
5

//預覽員工資料
[HttpGet]
public IActionResult View(Guid id) {
    return View();
}

下中斷點，執行：

  • 確認是否能正確取得到員工id
  • 核對員工id正確性，是否和頁面&DB相同

3. 撰寫邏輯(draft)

1
2
3
4
5
6
7
8
9
10

//預覽員工資料
[HttpGet]
public async Task<IActionResult> View(Guid id)
{
    //從db搜尋該員工
    var employee = await db.Employees.FirstOrDefaultAsync(e => e.Id == id);

    //將資料傳入View，如果員工不存在，也交給View處理，這裡不做判斷處理
    return View(employee);
}

4. 新增一個View Model (UpdateEmployeeViewModel.cs)，並在View中取得該Model

轉到View頁面
我們不應該用Employee Model，而是希望 Model 與 ViewModel 之間有隔離，
因此我們新增一個不同的View Model
所以我們新增一個UpdateEmployeeViewModel.cs類別

新增 View Model

UpdateEmployeeViewModel.cs

1
2
3
4
5
6
7
8
9
10
11
12

namespace ASPNETMVCCRUD.Models
{
    public class UpdateEmployeeViewModel
    {
        public Guid Id { get; set; }
        public string? Name { get; set; }
        public string? Email { get; set; }
        public DateTime DateOfBirth { get; set; }
        public int Salary { get; set; }
        public string? Department { get; set; }
    }
}

製作檢視頁面

Copy 之前的 Add表單來製作。

Razor View(View.cshtml)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

@model ASPNETMVCCRUD.Models.UpdateEmployeeViewModel

@{
}

<h1>Edit Employee</h1>

<!--form方法為post，action為對應controller的Viwe方法-->
<form method="post" action="View" class="mt-5">
    <div class="mb-3">
        <label for="" class="form-label">Id</label>
        <input type="text" class="form-control" asp-for="Id" readonly> <!--Id對應到View Model的屬性，並設唯讀-->
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Name</label>
        <input type="text" class="form-control" asp-for="Name"> <!--Name對應到View Model的屬性-->
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Email</label>
        <input type="email" class="form-control" asp-for="Email"> <!--Email對應到View Model的屬性-->
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Birthday</label>
        <input type="date" class="form-control" asp-for="DateOfBirth">
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Salary</label>
        <input type="number" class="form-control" asp-for="Salary">
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Department</label>
        <input type="text" class="form-control" asp-for="Department">
    </div>
    <button type="submit" class="btn btn-primary">Submit</button>
</form>

5. 撰寫程式邏輯

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

//預覽員工資料
[HttpGet]
public async Task<IActionResult> View(Guid id) {
    //從db搜尋該員工
    var employee = await db.Employees.FirstOrDefaultAsync(e => e.Id == id);

    //檢查是否有值，FirstOrDefaultAsync 有可能是null
    if (employee != null)
    {
        //取得的員工資料，轉為View Model
        var viewModel = new UpdateEmployeeViewModel {
            Id = employee.Id,
            Name = employee.Name,
            Email = employee.Email,
            DateOfBirth = employee.DateOfBirth,
            Salary = employee.Salary,
            Department = employee.Department
        };
        //將資料傳入View
        return await Task.Run(()=> View("View",viewModel));
    }

    //重新導向員工列表頁面
    return RedirectToAction("Index");
}

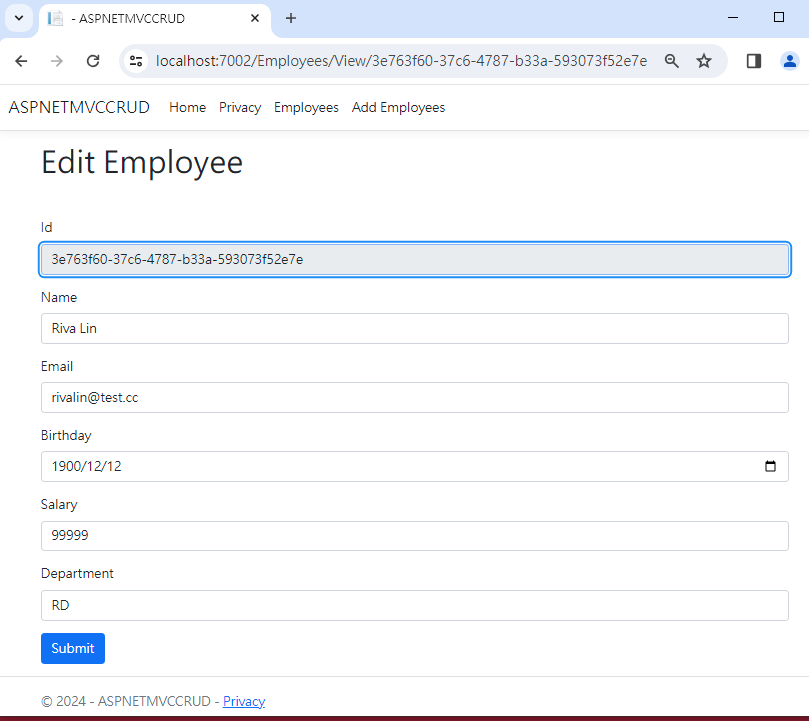

執行

Edit Employee Page

使用剛剛的形式來更新View Model資料 (員工列表 > View 按鈕 > 預覽頁面(可編輯))

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

//更新員工資料
[HttpPost]
public async Task<IActionResult> View(UpdateEmployeeViewModel model)
{
    //搜尋該員工是否存在
    var employee = await db.Employees.FindAsync(model.Id);

    //有該員工
    if (employee != null)
    {
        //更新資料
        employee.Name = model.Name;
        employee.Email = model.Email;
        employee.DateOfBirth = model.DateOfBirth;
        employee.Salary = model.Salary;
        employee.Department = model.Department;

        //確認保存資料
        await db.SaveChangesAsync();

        //返回員工列表頁面
        return RedirectToAction("Index");
    }
    //TODO:導向員工不存在的錯誤頁面
    return RedirectToAction("Error");
}

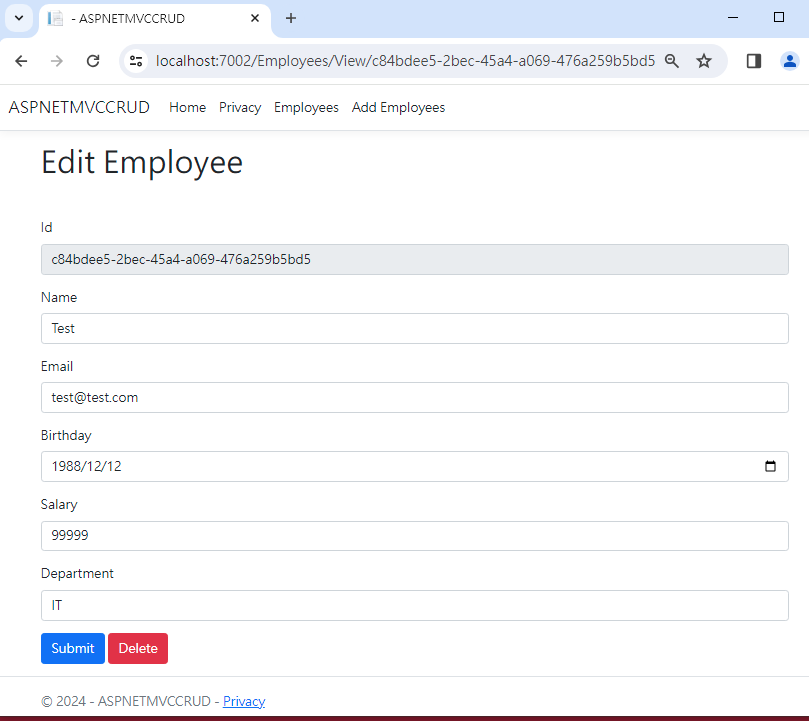

Delete Employee Controller Action Method and View

View

在View.cshtml 加上刪除按鈕，樣式改成danger紅色警示，再加上asp-controller=""

1
2
3

<button type="submit" class="btn btn-danger"
    asp-action=""
    asp-controller="">Delete</button>

完整View.cshtml

1

Delete Method
一樣使用view model取得表單資料

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

//刪除員工資料
[HttpPost]
public async Task<IActionResult> Delete(UpdateEmployeeViewModel model)
{
    //搜尋該員工
    var employee = await db.Employees.FindAsync(model.Id);

    //員工存在
    if (employee != null) {
        //刪除該員工
        db.Employees.Remove(employee);
        //確認保存db
        await db.SaveChangesAsync();

        //重新導向員工列表頁面
        return RedirectToAction("Index");
    }

    //重新導向員工列表頁面，或是員工不存在錯誤頁面
    return RedirectToAction("Index");
}

回到View.cshtml加上 asp-action、asp-controller
回到View.cshtml 填寫：與controller 溝通 Employees，調用Delete方法
  • action 加上方法名 Delete
  • controller 加上 Employees

1
2
3

<button type="submit" class="btn btn-danger"
    asp-action="Delete"
    asp-controller="Employees">Delete</button>

執行
完整程式碼
appsettings.json

1
2
3
4
5
6
7
8
9
10
11
12

{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*",
  "ConnectionStrings": {
    "MvcDemoConnectionString": "Data Source=RIVAWIN10\\MSSQLSERVER_2019;Initial Catalog=MvcDemoDb;User ID=riva;Password=1234;Trust Server Certificate=True"
  }
}

DbContext.cs
MVCDemoDbContext.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14

using ASPNETMVCCRUD.Models.Domain;
using Microsoft.EntityFrameworkCore;

namespace ASPNETMVCCRUD.Data
{
    //1.繼承DbContext
    public class MVCDemoDbContext : DbContext
    {
        //2.調用父類的建構函式，並把options傳入
        public MVCDemoDbContext(DbContextOptions options) : base(options) { }
        //3.員工實體集合的屬性(Employee型別的DbSet)
        public DbSet<Employee> Employees { get; set; }
    }
}

Program.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

using ASPNETMVCCRUD.Data;
using Microsoft.EntityFrameworkCore;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddControllersWithViews().AddRazorRuntimeCompilation();

//加入DbContext服務(db連線)
builder.Services.AddDbContext<MVCDemoDbContext>(options =>
    options.UseSqlServer(builder.Configuration
    .GetConnectionString("MvcDemoConnectionString")));

var app = builder.Build();

// Configure the HTTP request pipeline.
if (!app.Environment.IsDevelopment())
{
    app.UseExceptionHandler("/Home/Error");
    // The default HSTS value is 30 days. You may want to change this for production scenarios, see https://aka.ms/aspnetcore-hsts.
    app.UseHsts();
}

app.UseHttpsRedirection();
app.UseStaticFiles();

app.UseRouting();
app.UseAuthorization();
app.MapControllerRoute(
    name: "default",
    pattern: "{controller=Home}/{action=Index}/{id?}");

app.Run();

Model
Employee.cs 對資料表中所有的欄位
可做為與db溝通的實體
 可做為RazorView頁面使用的model，
 例如：想要顯示所有員工資料的列表，使用@model導入model
 @model List<ASPNETMVCCRUD.Models.Domain.Employee>

1
2
3
4
5
6
7
8
9
10
11
12

namespace ASPNETMVCCRUD.Models.Domain
{
    public class Employee
    {
        public Guid Id { get; set; }
        public string? Name { get; set; }
        public string? Email { get; set; }
        public DateTime DateOfBirth { get; set; }
        public int Salary { get; set; }
        public string? Department { get; set; }
    }
}

View Model
AddEmployee View Model
AddEmployeeViewModel.cs用以提供「新增員工資料」的Razor頁面使用，資料會來自用戶在瀏覽器輸入的值。

1
2
3
4
5
6
7
8
9
10
11
12

namespace ASPNETMVCCRUD.Models
{
    //希望這些值來自瀏覽器
    public class AddEmployeeViewModel
    {
        public string? Name { get; set; }
        public string? Email { get; set; }
        public DateTime DateOfBirth { get; set; }
        public int Salary { get; set; }
        public string? Department { get; set; }
    }
}

RazorView可以使用@model將 ViewModel導入
 例如：@model ASPNETMVCCRUD.Models.AddEmployeeViewModel
UpdateEmployee View Model
UpdateEmployeeViewModel.cs用以提供「預覽員工」、「修改員工」資料的頁面Razor頁面使用。

1
2
3
4
5
6
7
8
9
10
11
12

namespace ASPNETMVCCRUD.Models
{
    public class UpdateEmployeeViewModel
    {
        public Guid Id { get; set; }
        public string? Name { get; set; }
        public string? Email { get; set; }
        public DateTime DateOfBirth { get; set; }
        public int Salary { get; set; }
        public string? Department { get; set; }
    }
}

RazorView可以使用@model將 ViewModel導入
 例如：@model ASPNETMVCCRUD.Models.UpdateEmployeeViewModel
Controller.cs
EmployeesController.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128

namespace ASPNETMVCCRUD.Controllers
{
    public class EmployeesController : Controller
    {
        //與資料庫溝通的DbContext
        private readonly MVCDemoDbContext db;
        public EmployeesController(MVCDemoDbContext dbContext)
        {
            db = dbContext;
        }

        //列表
        [HttpGet]
        public async Task<IActionResult> Index()
        {
            var employees = await db.Employees.ToListAsync();
            return View(employees);
        }

        //用戶輸入
        [HttpGet]
        public IActionResult Add()
        {
            return View();
        }

        //用戶提交
        [HttpPost]
        public async Task<IActionResult> Add(AddEmployeeViewModel data)
        {
            //先將用戶輸入的值轉為employee
            var employee = new Employee {
                Id = Guid.NewGuid(),
                Name = data.Name,
                Email = data.Email,
                DateOfBirth = data.DateOfBirth,
                Salary = data.Salary,
                Department = data.Department
            };

            //儲存到db
            await db.Employees.AddAsync(employee); //資料加入到Employees
            await db.SaveChangesAsync(); //確認保存到db

            //回到員工列表頁面
            return RedirectToAction("Index");
        }

        //預覽員工資料
        [HttpGet]
        public async Task<IActionResult> View(Guid id)
        {
            //從db搜尋該員工
            var employee = await db.Employees.FirstOrDefaultAsync(e => e.Id == id);

            //檢查是否有值，FirstOrDefaultAsync 有可能是null
            if (employee != null)
            {
                //取得的員工資料，轉為View Model
                var viewModel = new UpdateEmployeeViewModel {
                    Id = employee.Id,
                    Name = employee.Name,
                    Email = employee.Email,
                    DateOfBirth = employee.DateOfBirth,
                    Salary = employee.Salary,
                    Department = employee.Department
                };
                //將資料傳入View
                return await Task.Run(()=> View("View",viewModel));
            }

            //重新導向員工列表頁面
            return RedirectToAction("Index");
        }

        //更新員工資料
        [HttpPost]
        public async Task<IActionResult> View(UpdateEmployeeViewModel model)
        {
            //搜尋該員工是否存在
            var employee = await db.Employees.FindAsync(model.Id);

            //有該員工
            if (employee != null)
            {
                //更新資料
                employee.Name = model.Name;
                employee.Email = model.Email;
                employee.DateOfBirth = model.DateOfBirth;
                employee.Salary = model.Salary;
                employee.Department = model.Department;

                //確認保存資料
                await db.SaveChangesAsync();

                //返回員工列表頁面
                return RedirectToAction("Index");
            }
            //TODO:導向員工不存在的錯誤頁面
            return RedirectToAction("Error");
        }


        //刪除員工資料
        [HttpPost]
        public async Task<IActionResult> Delete(UpdateEmployeeViewModel model)
        {
            //搜尋該員工
            var employee = await db.Employees.FindAsync(model.Id);

            //員工存在
            if (employee != null)
            {
                //刪除該員工
                db.Employees.Remove(employee);
                //確認保存db
                await db.SaveChangesAsync();

                //重新導向員工列表頁面
                return RedirectToAction("Index");
            }

            //重新導向員工列表頁面，或是員工不存在錯誤頁面
            return RedirectToAction("Index");
        }

    }
}

View
Index.cshtml (員工列表)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

<!--因為是取得所有員工列表資料，所以可以用Employee Model，因為是列表，所以加上List<>-->
@model List<ASPNETMVCCRUD.Models.Domain.Employee>
@{
}

<h1>Employee List</h1>

<table class="table">
    <thead>
        <tr>
            <th>Id</th>
            <th>Name</th>
            <th>Email</th>
            <th>Date Of Birth</th>
            <th>Salary</th>
            <th>Department</th>
            <th></th>
        </tr>
    </thead>
    <tbody>
        <!--跑迴圈將資料顯示出來-->
        @foreach(var employee in Model)
        {
            <tr>
                <td>@employee.Id</td>
                <td>@employee.Name</td>
                <td>@employee.Email</td>
                <td>@employee.DateOfBirth.ToString("yyyy-MM-dd")</td>
                <td>@employee.Salary</td>
                <td>@employee.Department</td>
                <td><a href="Employees/View/@employee.Id">View</a></td>
            </tr>
        }
    </tbody>
</table>

Add.cshtml (新增員工)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

@model ASPNETMVCCRUD.Models.AddEmployeeViewModel
@{
}

<h1>Add Employee</h1>

<!--form方法為post，action為對應controller的Add方法-->
<form method="post" action="Add" class="mt-5">
    <div class="mb-3">
        <label for="" class="form-label">Name</label>
        <input type="text" class="form-control" asp-for="Name"> <!--Name對應到View Model的屬性-->
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Email</label>
        <input type="email" class="form-control" asp-for="Email"> <!--Email對應到View Model的屬性-->
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Birthday</label>
        <input type="date" class="form-control" asp-for="DateOfBirth">
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Salary</label>
        <input type="number" class="form-control" asp-for="Salary">
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Department</label>
        <input type="text" class="form-control" asp-for="Department">
    </div>
    <button type="submit" class="btn btn-primary">Submit</button>
</form>

View.cshtml (預覽員工-可更新、刪除)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

@model ASPNETMVCCRUD.Models.UpdateEmployeeViewModel

@{
}

<h1>Edit Employee</h1>

<!--form方法為post，action為對應controller的Viwe方法-->
<form method="post" action="View" class="mt-5">
    <div class="mb-3">
        <label for="" class="form-label">Id</label>
        <input type="text" class="form-control" asp-for="Id" readonly> <!--Id對應到View Model的屬性，欄位設唯讀readonly-->
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Name</label>
        <input type="text" class="form-control" asp-for="Name"> <!--Name對應到View Model的屬性-->
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Email</label>
        <input type="email" class="form-control" asp-for="Email"> <!--Email對應到View Model的屬性-->
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Birthday</label>
        <input type="date" class="form-control" asp-for="DateOfBirth">
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Salary</label>
        <input type="number" class="form-control" asp-for="Salary">
    </div>
    <div class="mb-3">
        <label for="" class="form-label">Department</label>
        <input type="text" class="form-control" asp-for="Department">
    </div>
    <!--更新按鈕-->
    <button type="submit" class="btn btn-primary" asp-action="">Submit</button>

    <!--刪除按鈕: 加上asp-action和asp-controller，其為按上後，會執行Employees的Controller之Delete方法-->
    <button type="submit" class="btn btn-danger"
        asp-action="Delete"
        asp-controller="Employees">Delete</button>
</form>

_Layout.cshtml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>@ViewData["Title"] - ASPNETMVCCRUD</title>
    <link rel="stylesheet" href="~/lib/bootstrap/dist/css/bootstrap.min.css" />
    <link rel="stylesheet" href="~/css/site.css" asp-append-version="true" />
    <link rel="stylesheet" href="~/ASPNETMVCCRUD.styles.css" asp-append-version="true" />
</head>
<body>
    <header>
        <nav class="navbar navbar-expand-sm navbar-toggleable-sm navbar-light bg-white border-bottom box-shadow mb-3">
            <div class="container-fluid">
                <a class="navbar-brand" asp-area="" asp-controller="Home" asp-action="Index">ASPNETMVCCRUD</a>
                <button class="navbar-toggler" type="button" data-bs-toggle="collapse" data-bs-target=".navbar-collapse" aria-controls="navbarSupportedContent"
                        aria-expanded="false" aria-label="Toggle navigation">
                    <span class="navbar-toggler-icon"></span>
                </button>
                <div class="navbar-collapse collapse d-sm-inline-flex justify-content-between">
                    <ul class="navbar-nav flex-grow-1">
                        <li class="nav-item">
                            <a class="nav-link text-dark" asp-area="" asp-controller="Home" asp-action="Index">Home</a>
                        </li>
                        <li class="nav-item">
                            <a class="nav-link text-dark" asp-area="" asp-controller="Home" asp-action="Privacy">Privacy</a>
                        </li>
                        <!--員工列表連結-->
                        <li class="nav-item">
                            <a class="nav-link text-dark" asp-area="" asp-controller="Employees" asp-action="Index">Employees</a>
                        </li>
                        <!--新增員工連結-->
                        <li class="nav-item">
                            <a class="nav-link text-dark" asp-area="" asp-controller="Employees" asp-action="Add">Add Employees</a>
                        </li>
                    </ul>
                </div>
            </div>
        </nav>
    </header>
    <div class="container">
        <main role="main" class="pb-3">
            @RenderBody()
        </main>
    </div>

    <footer class="border-top footer text-muted">
        <div class="container">
            &copy; 2024 - ASPNETMVCCRUD - <a asp-area="" asp-controller="Home" asp-action="Privacy">Privacy</a>
        </div>
    </footer>
    <script src="~/lib/jquery/dist/jquery.min.js"></script>
    <script src="~/lib/bootstrap/dist/js/bootstrap.bundle.min.js"></script>
    <script src="~/js/site.js" asp-append-version="true"></script>
    @await RenderSectionAsync("Scripts", required: false)
</body>
</html>

ASP.NET Core MVC CRUD - .NET 6 MVC CRUD Operations Using Entity Framework Core and SQL Server
 MSDN - Entity Framework Core
 MSDN - Entity Framework Core 工具參考
 MSDN - 安裝 Entity Framework Core
 MSDN - 使用 ASP.NET Core 應用程式中的資料
 MSDN - DbContext 的存留期、設定與初始化
 [MSDN - DbSet 類別](https://learn.microsoft.com/zh-tw/dotnet/api/system.data.entity.dbset-1?view=entity-framework-6.2.0)

  Notes, C#, .NET Core, MVC
  C# .Net Core MVC EF Core CRUD
 This post is licensed under  CC BY 4.0  by the author.
Contents
